Editing scenes

A scene is what a frame shows: a graph of connected nodes that runs on the device. Scenes are built in a visual editor, then deployed onto the frame, where it runs.

Create a scene

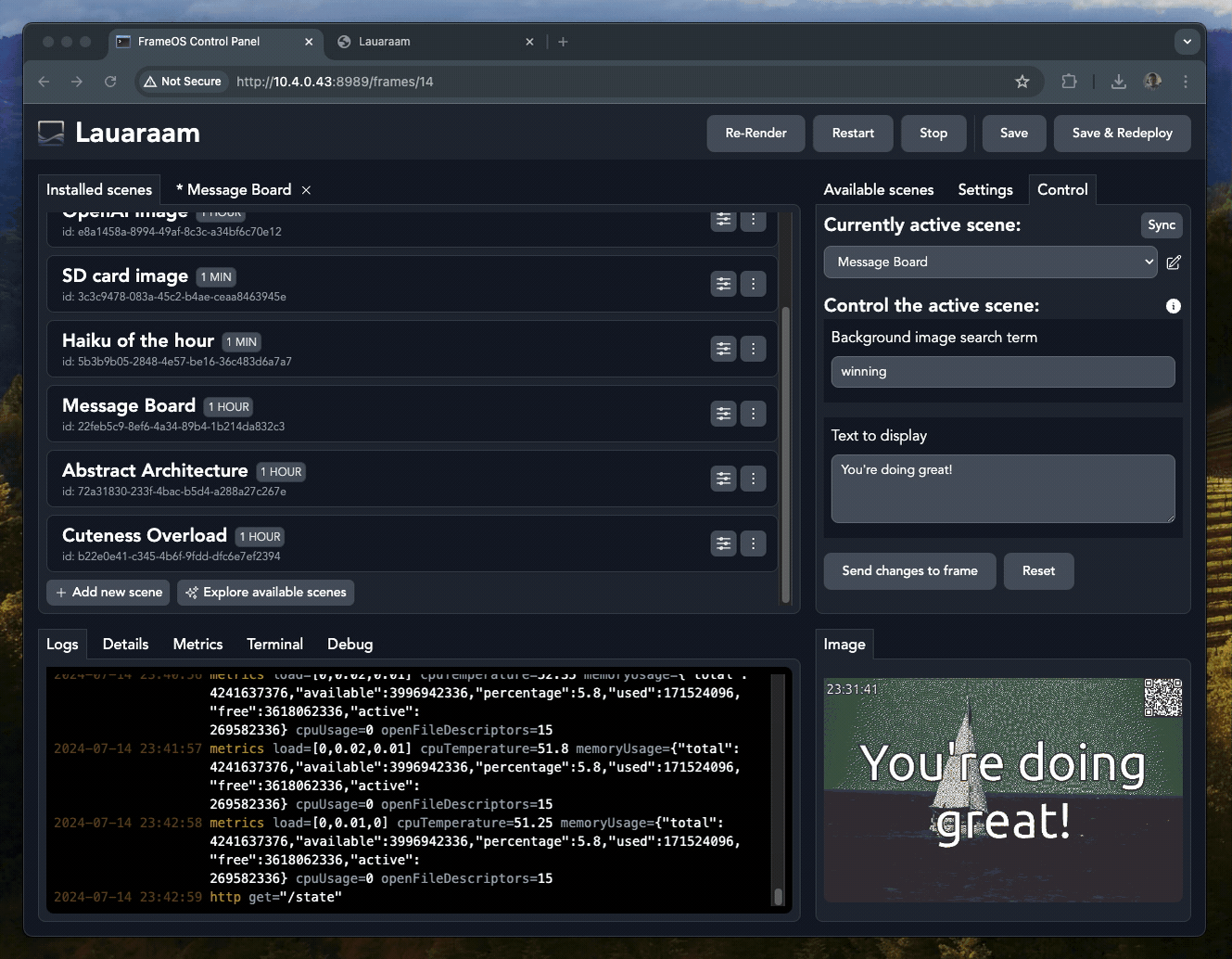

Click + Add new scene, give it a name, and open the editor.

The four node colors

• 🟥 Red - events. Entry points that trigger execution. The most important one is render, which fires at a set interval (every 60 seconds, every hour, whatever you choose). Others react to buttons, touch and keyboards, schedules, or custom events.
• 🟦 Blue - render apps. Draw things: images, text, calendars, gradients, split layouts.
• 🟩 Green - data apps. Fetch and transform data: download an image, query Home Assistant, parse an iCal feed, generate an image with OpenAI, take a screenshot of a web page.
• 🟨 Yellow - state fields. User-editable values (text, numbers, options) that can be changed live from the control page without redeploying.

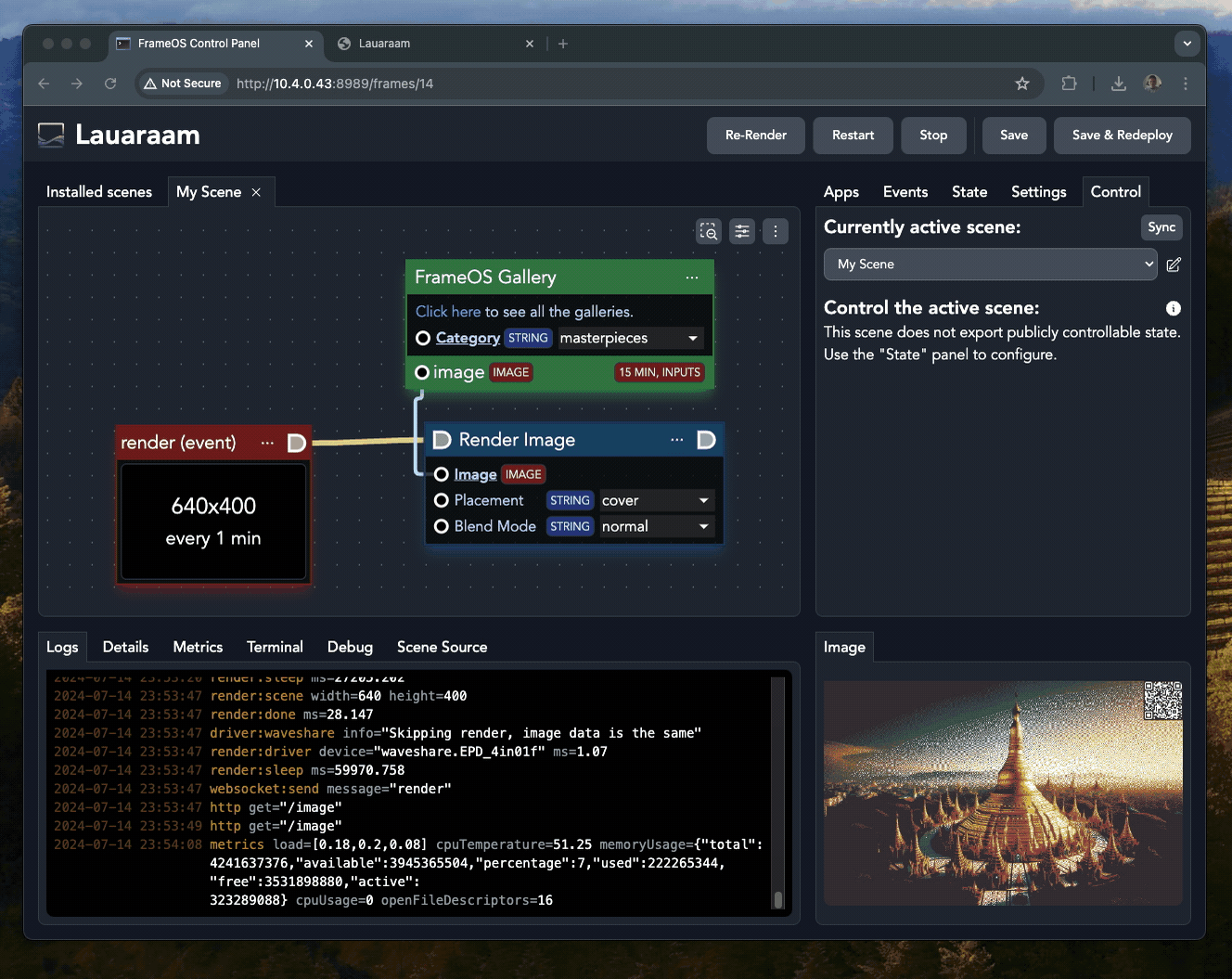

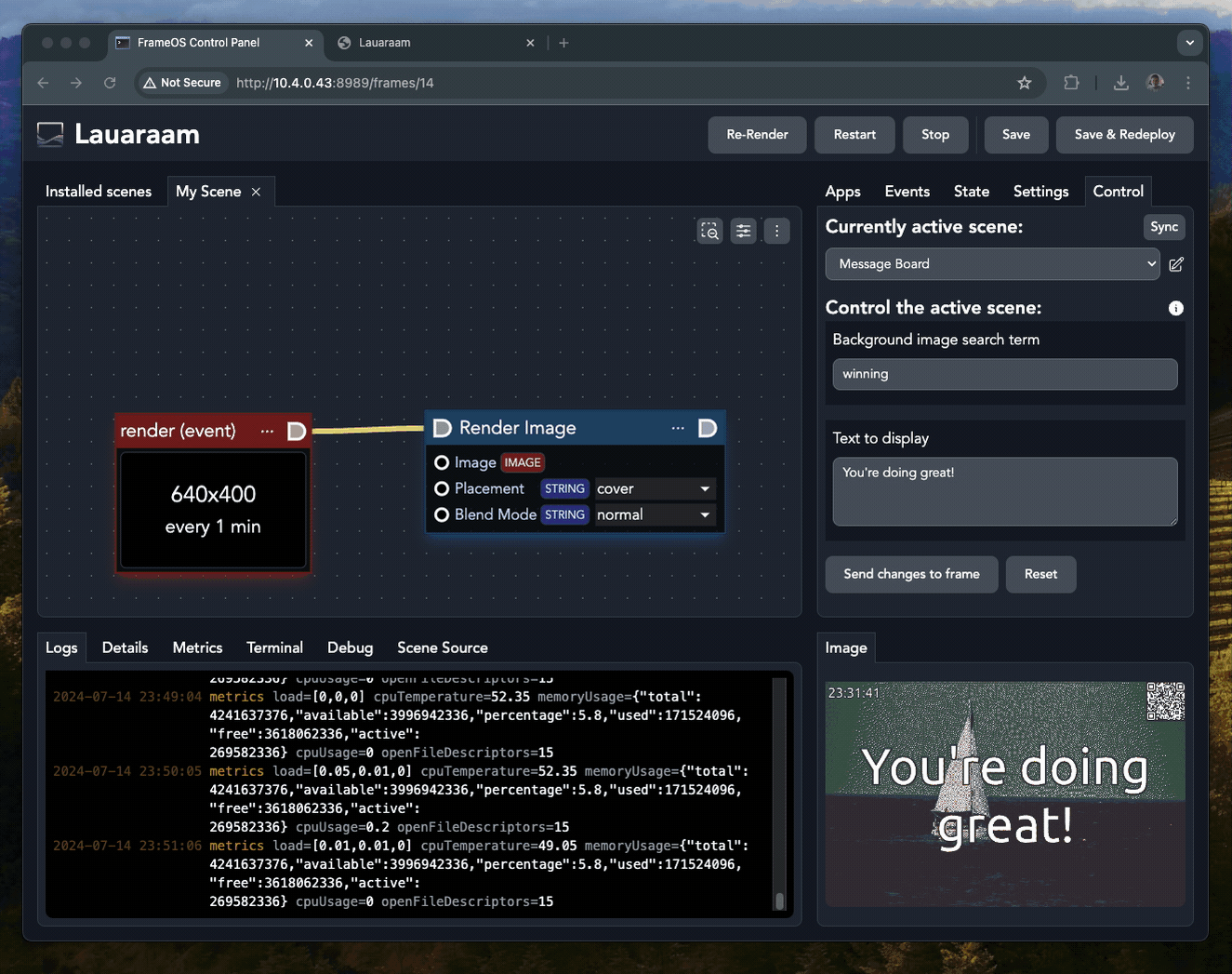

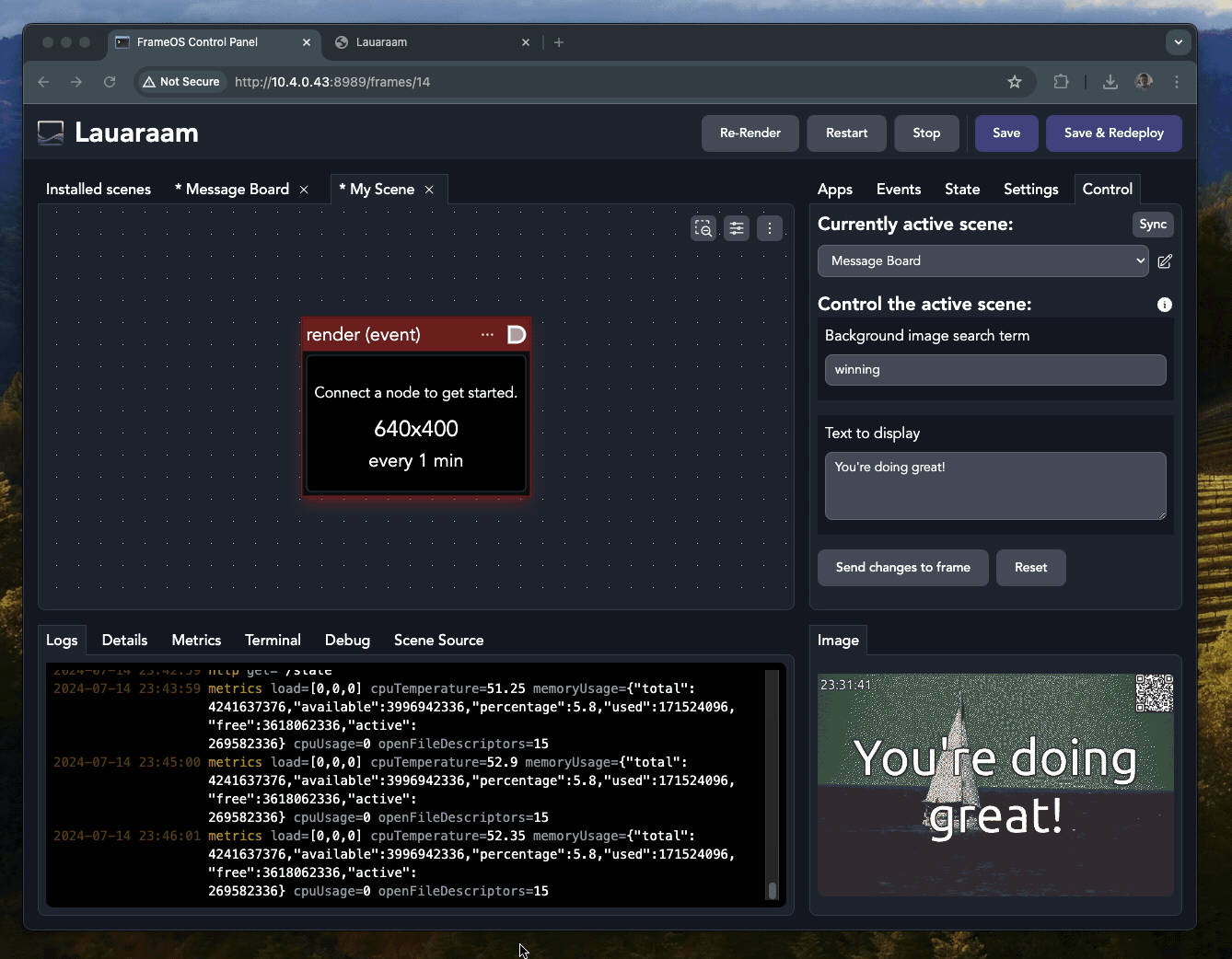

Drag from the render event's connector to add a blue Render image app:

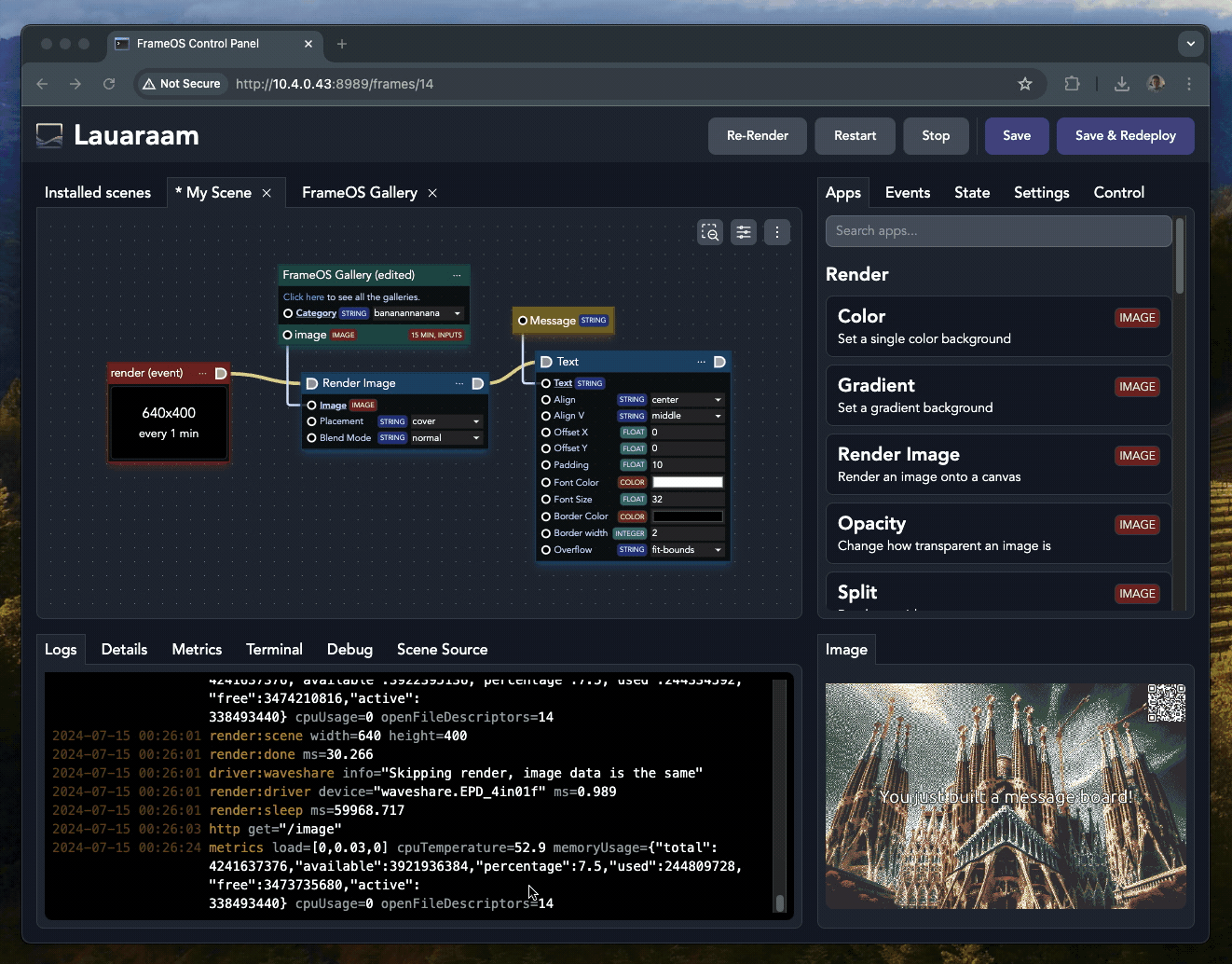

Then drag its image field out and pick a green data app to feed it - use FrameOS Gallery if unsure. Press deploy:

Caching

Every data app has cache controls. A scene might re-render every minute while its data app only fetches a new image every 15 minutes - the cached value is reused in between. And if a re-render produces the same image as before, an e-ink display won't refresh at all: no unnecessary flashing.

State fields

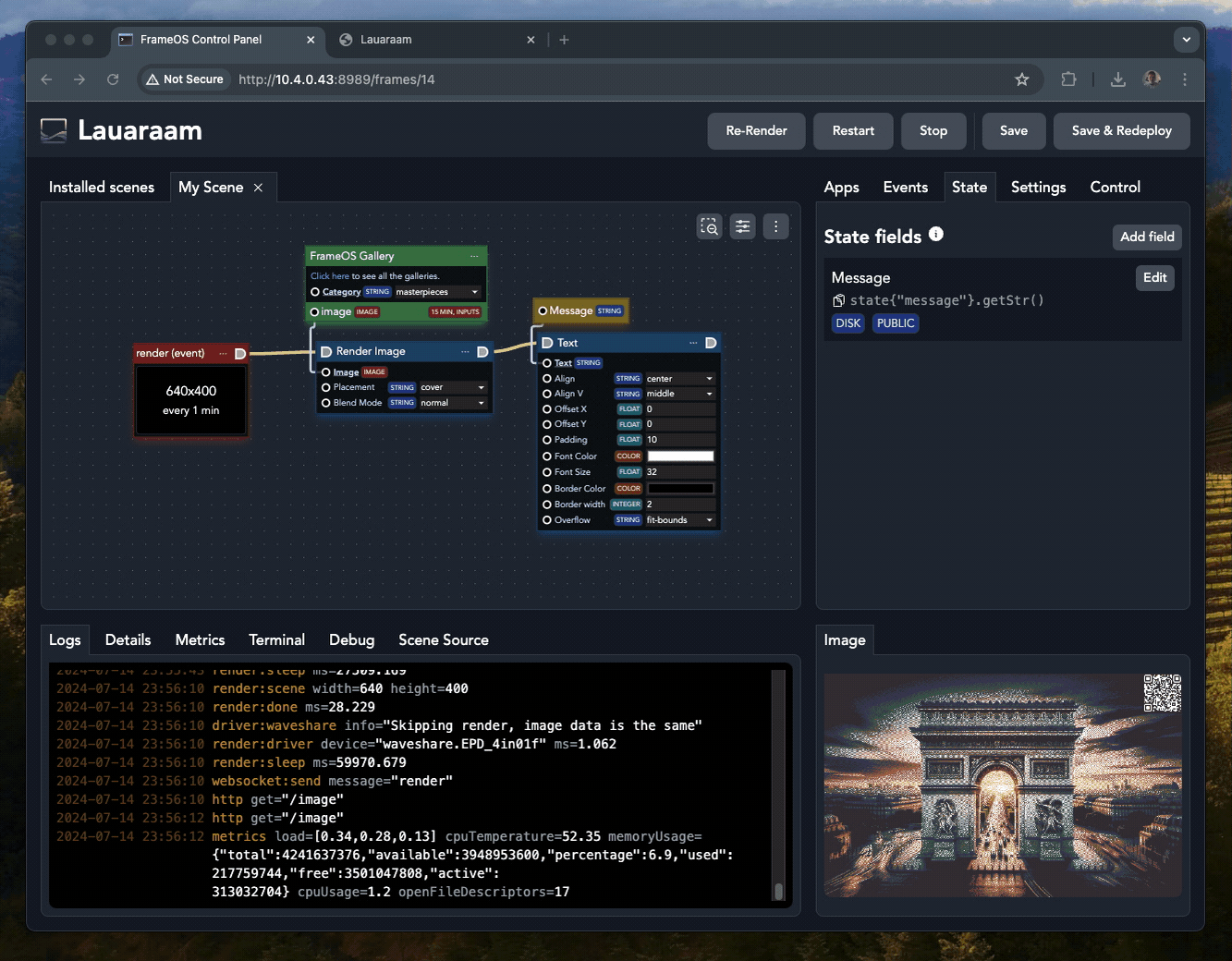

Add a yellow state field under the scene's "State" tab, then drag it onto the canvas and wire it into any app input. Deploy once, and from then on you can change the value live - from the frame's control page, the backend, or the HTTP API.

Fields are typed, and the type decides what the control page shows: text, long text, numbers, booleans, a color picker, a date picker, a select box, raw JSON, a font picker, an image, a scene picker - or a path, which is a file and folder browser over the frame's own assets. "Which photo folder should this play?" becomes a picker instead of a typed-in string. A select's options are one per line, either a plain value or value | Label when what the frame stores and what people read should differ. Write a literal pipe as \|.

A scene with both a latitude and a longitude field (latitude or lat, and longitude, lon, lng or long) gets a Use my location button wherever its state is edited: the scene's drawer, previews, schedule entries and split screen panels. It fills in both from your browser. A page opened over plain HTTP, like a frame's own admin page on your LAN, gets no location from any browser, and the button says so.

Every scene also has one field you don't add yourself: Refresh interval (seconds), listed last wherever the scene's fields show up - the control page, the backend, the cloud, schedules and previews. It starts at the interval from the scene's settings; change it like any other field and the next sleep follows. To decide where it sits, what it's called, or to hide it (access: private), add your own numeric field and switch on Use as refresh interval. In code it is state.refreshInterval. The Next sleep duration app is still a one-time override: it sets how long to sleep after this render, and the render after that is back on the interval.

Scenes inside scenes

A split (or any scene node) draws other scenes into cells, and each of them renders on its own schedule: a clock that ticks every second next to a photo that changes every hour re-runs only the clock, and the photo's cell puts back what it drew last time. The split's own interval is the fastest it renders, so set it to the quick cell's pace; each cell's options say when that cell renders. A render asked for from outside - a button, the API, the schedule - redraws every cell.

In a JSX app, <Scene id="weather" /> does the same inside a UI: another scene of the frame drawn into a box, on its own schedule, with the tag's props as its state, and taps on it reach it in its own coordinates. Up to eight fit in one UI, and the scene draws straight into its part of the canvas - a dashboard of scene tiles redraws only the tile that's due.

Layouts

A layout is a scene that wraps your other scenes: a taskbar with the clock and the battery, a newspaper masthead, a Polaroid border.

It's one JSX app with a <yield /> where the scene goes:

export function get(app: FrameOSApp) {
  const now = new Date()
  frameos.setNextSleep(60 - now.getSeconds()) // nothing to redraw until the minute changes
  return (
    <div className="flex flex-col bg-slate-900 text-white">
      <yield />
      <div className="flex justify-between px-4 py-2 text-xl">
        <span onClick={() => frameos.dispatch('sceneSwitcher')}>{app.frame.sceneName}</span>
        <span>{now.toTimeString().slice(0, 5)}</span>
      </div>
    </div>
  )
}

The scene draws straight into the hole and keeps its own schedule, and the chrome around it redraws only when it's due, so a 20 fps animation inside a clock bar pays for the bar only when the clock changes. Taps go to whatever is under them. A layout's app can read app.frame.sceneName, app.frame.batteryPercent and app.frame.wifiRssi, and open the frame's own screens with frameos.dispatch('sceneSwitcher'), frameos.dispatch('sceneSettings') and frameos.dispatch('sceneSettings', { page: 'frame' }).

• Starters: Top bar, Bottom bar, Side rail, Windows 98, Polaroid, Front page, Terminal and Gallery wall are one click away under New layout in the frame's Layouts group, and the scene store has a Layouts shelf.
• Any scene can be one: Use as layout in its settings turns it into a layout and back, if its render is one JSX app with a <yield /> - the switch says why when it isn't. A layout stays out of the scene list, the switcher and next/previous, and a frame never boots to one.
• Wearing one: Activate in a layout's drawer puts it on every scene and pushes it, and Deactivate takes it off. A scene added later wears it too. Each scene can pick its own under Advanced in the frame's Layout setting, and the frame's on-screen settings can change it on the device.
• Around the built-in screens: the scene switcher and the settings open inside the layout, so a taskbar stays up. A layout that wants them full-screen returns a bare <yield /> while app.frame.systemScene is true.
• Safe mode: a layout can make a frame hard to use. Ten pulls down from the top edge of a touch screen, each within five seconds of the last, open the frame's settings without the layout: Cancel goes back as it was, and only Save changes anything.

Buttons, touch and keyboards

A frame's GPIO buttons reach a scene as two events:

• button - what the person meant: press, doublePress, or longPress (held a second or more, delivered once, on release). Every press is exactly one of the three, so a button listener without an action filter never runs twice for one press. A press arrives 350 ms after the release, once it's clear no second tap is coming.
• gpio - what the line did: down and up, the moment they happen. Listen for these to count every tap, or for hold-to-show.

Each edge is timestamped when the frame sees it, so a tap made while an e-ink panel spends 30 seconds refreshing is still a tap, and two of them are still a double press. In the event node, the label and pin filters pick from the frame's own buttons.

On a Pi with a touchscreen, a mouse or a keyboard, scenes also hear pointerDown, pointerMove and pointerUp (one pointer per finger), wheel, keyDown and keyUp with the key in the frame's keyboard layout, textInput, and the gestures tap, doubleTap, longPress and swipe - all in the scene's own pixels, rotated frames included. The older mouseMove / mouseDown / mouseUp names keep working. The Touch test and Keyboard test sample scenes show every event as it arrives. The browser preview sends the same events from your mouse and keyboard, and a preview button you hold down is held like a frame's key. The touch screens of ESP32 boards send the same pointer events and gestures. A touch longPress is held half a second, as on a phone; a button's is a second. A swipe that starts at the very edge of a touch screen is the frame's (edgeSwipe) and never reaches the scene.

Swipes in from the edge. On every HyperPixel, the SenseCAP Indicator and the reTerminal E1003 and Sticky, the edges come bound to the frame:

back and forward never change the scene, and a scene that doesn't listen for them stays as it is. Changing the scene on a touch screen is the switcher's job. In the switcher they turn the page, and in the settings back is Cancel. Both screens close themselves if left alone: the switcher after 60 seconds (five minutes on e-paper), the settings after five minutes. A press on the on-screen keyboard is always a key, even on the outer keys at the edge of the glass.

The switcher's tiles keep one size however many scenes there are. A Pi shows a picture of each scene; an ESP32 shows name cards, which open in a moment where pictures from flash took seconds. The switcher works without touch too. On e-paper it's black on white and the keys walk a highlight: next and prev step, primary, refresh and menu show the scene, back goes back. E-paper without touch doesn't come with a binding for it, so add one under Button actions (a double press of REFRESH, say), or send sceneSwitcher over HTTP.

Whose buttons? A scene listens for the keys its author had - A and B, or a next role - and your frame has the keys it has. Two maps sit between them:

• Map buttons, in an installed scene's … menu, lists the scene's button listeners and lets you pick which press of which of your frame's buttons each one answers to - REFRESH is this scene's A, a long press of REFRESH its B. It belongs to the scene as installed on this frame: the scene itself is untouched, and an update to a newer version keeps the mapping.
• Button actions, in the frame's settings, bind a press or an edge swipe to the frame itself - next scene, previous scene, the scene switcher, render - whatever scene is showing, and the scene never hears it.

A setCurrentScene event can name a direction (next or prev) instead of a scene, to walk the frame's scene list.

On an LCD - an HDMI screen, a HyperPixel, the SenseCAP Indicator - any render that hasn't put its picture up within 200 ms shows three pulsing dots over the old picture until it does: a scene switch, a slow tap, a slow refresh. A quick one looks as it always did, and animations never show them.

Code nodes

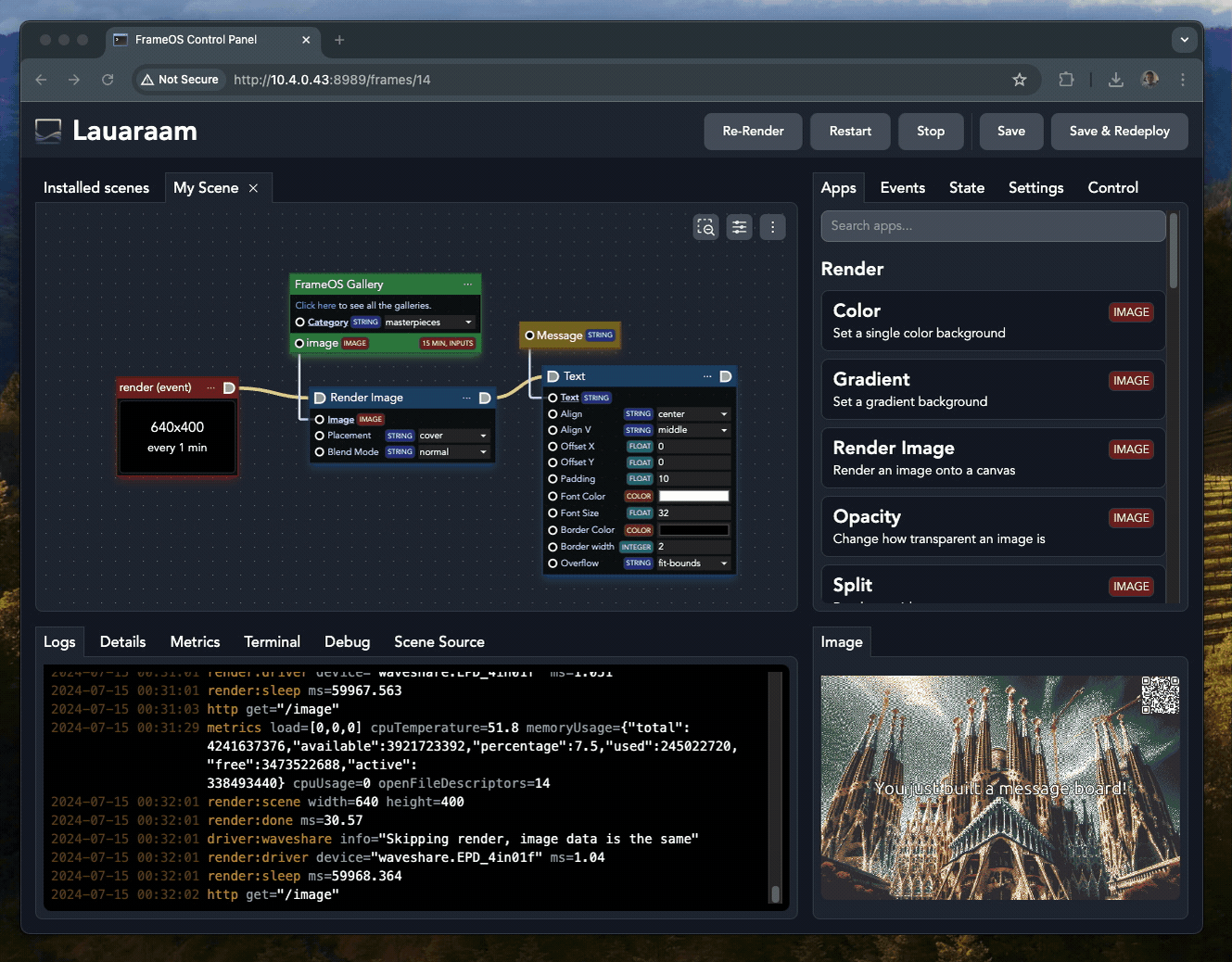

For quick data plumbing there are inline code nodes (green when not selected): single JavaScript or TypeScript expressions that combine or transform values mid-graph - string concatenation, math, formatting. (A legacy compiled scene may still carry Nim expressions; those nodes show a "Legacy Nim" chip with a Convert scene button.)

How scenes run

Scenes are interpreted: the frame runs the graph as you drew it. New scenes are created that way, every scene FrameOS ships is built that way, and it's the only way ESP32 and Pico frames can work at all. What you get:

• Deploys are near-instant - nothing is recompiled, so a change is on the frame in seconds.
• Code nodes are JavaScript, TypeScript or JSX, and apps can be customised in JavaScript.
• It costs a little more per render, which matters very little on a display that takes 20 seconds to refresh anyway.

There is a second, older mode - compiled - which turns the scene into native code inside the frame's binary. It is a legacy path: it's the only mode that can run custom Nim app source and Nim code nodes, but it forces a FrameOS source build on every deploy, and it only works on a Raspberry Pi deployed from a self-hosted backend. The cloud refuses compiled scenes outright, at upload and at install. Nothing in the editor creates one any more: new code nodes are always JavaScript, and saving or installing a Nim-only app asks before it flips a scene to compiled. Compiled scenes wear an amber legacy compiled tag - on the frame list, in the deploy drawer and in the scene sidebar.

The way out is the converter: Convert to an interpreted scene, in the scene's menu, in Scene Settings and on any "Legacy Nim" node. It ports Nim code nodes and scene-local Nim apps to JavaScript - simple expressions convert deterministically, the rest goes through an AI pass, and whatever can't be ported is reported as needing a manual port. It converts the editor's unsaved copy in place, so check the result, then save or deploy. The Nim does not survive the conversion - export the scene first if you want a backup. A backend forwards the conversion to the cloud, using your OpenAI key from Settings → OpenAI when one is set. The same converter is a public page at scenes.frameos.net/nim-converter (paste scene JSON, no login) and a scene_convert MCP tool.

On the frame side there are two ways a binary gets built: precompiled (the release binary plus its driver libraries, scenes interpreted - the default) and static (everything compiled into one binary, which is what a compiled scene forces). Frames still configured with the retired shared or shared-scenes modes are moved to static automatically.

Push, activate, preview

A frame's scene drawer has three buttons. The main one puts the scene on the frame as it stands, saved or not: Push & activate (or Push to frame on the scene that's already active) while the frame doesn't have your latest edits, plain Activate (or Apply) once it does. It pushes only that scene and the scenes it draws or switches to - settings and your other unsaved edits stay where they are. Preview runs the scene in your browser with the values in the drawer, and Reset puts them back. Scenes are pushed; settings and FrameOS itself are deployed.

Installing a scene - from the store, the Scenes page, or dropped on a frame's tile - saves it and pushes it to the frame without changing what's showing. Install & activate, in the install dialog and on every catalog row, does both in one push.

Two ways to see a scene without committing to it:

• Preview in browser runs the scene in your browser. The frame's renderer is compiled to WebAssembly, so you get the real thing - same apps, same layout engine, same resolution - without deploying to a device, or before you own one. It comes with a Browser assets folder that lives only in your browser (seeded with sample photos, so slideshow and SD-card scenes render), JavaScript clocks in the frame's time zone, and a real-time toggle for scenes that want to run faster than one frame a second. A Device menu above Resolution puts the preview on a real panel - the Seeed reTerminal E1001 to E1004 and Sticky, the Waveshare PhotoPainter and 13.3", Inky Impressions and the Inky Frame, the CrowPanel, the SenseCAP Indicator, HyperPixels, the Pi touch displays, a 1080p or 4K screen - with that panel's size and inks. Rotate turns it and keeps the device.
• Preview on frame temporarily shows the scene on the actual frame without saving or deploying it. Good for checking how a color dithers on real e-ink. A sleeping ESP32 gets it on its next wake. While it's on the frame, the scene list shows it as a dashed preview row above your saved scenes, with Install to add it to the frame's scenes and Discard to take it off. Until you pick one, the preview stays: a deploy or another push carries it along. Pictures and scenes made by the voice chat arrive the same way.

How to learn

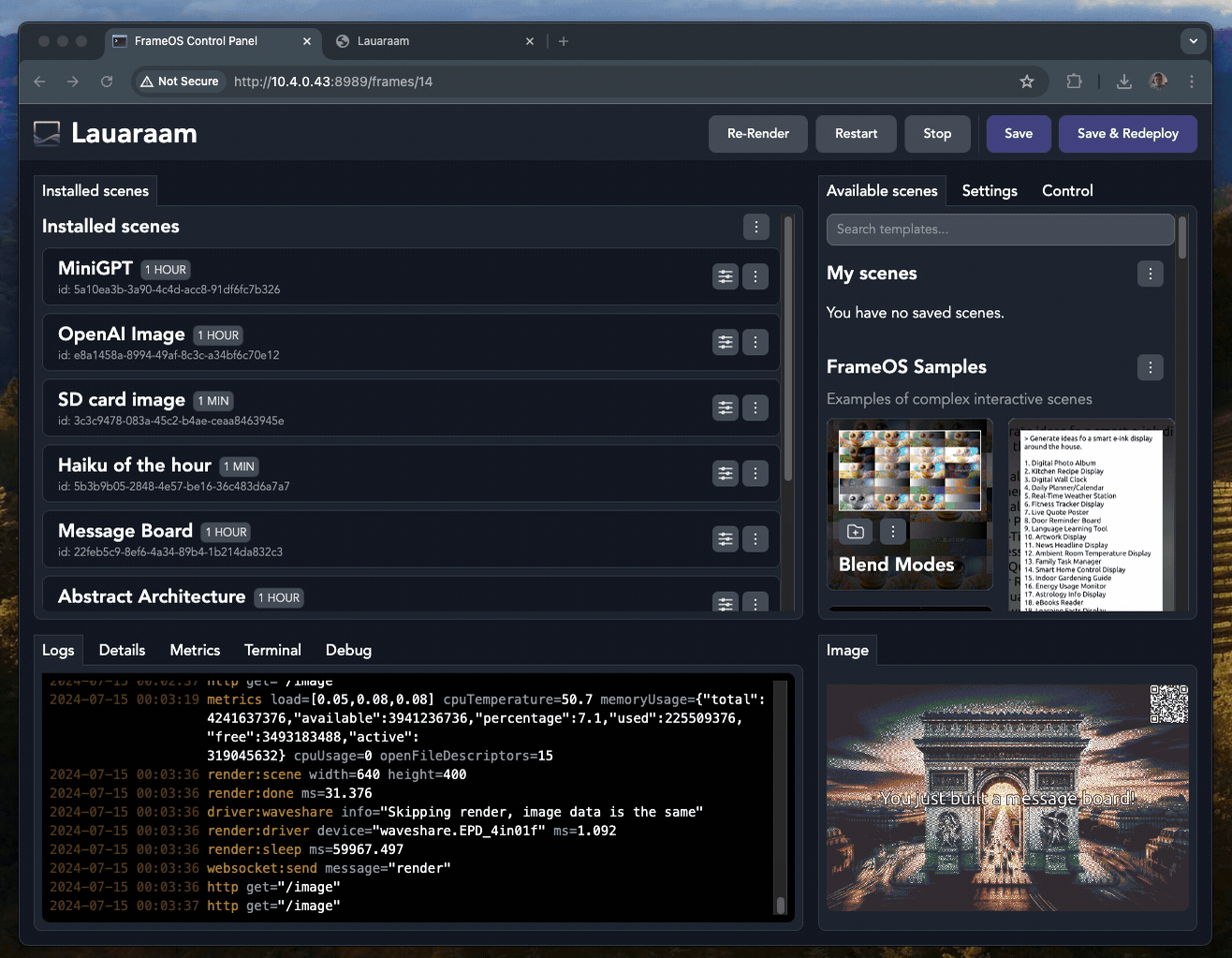

FrameOS ships with many sample scenes. The fastest way to learn is to install them, open them in the editor, and poke around.

With an AI assistant on your backend or in the cloud, you can also describe a scene - or a change to one - in the editor's chat drawer, and it builds or edits the graph, renders it to check, and hands it to the editor unsaved.

When the visual editor isn't enough, write your own apps - in Nim or JavaScript. Editing apps is next.
